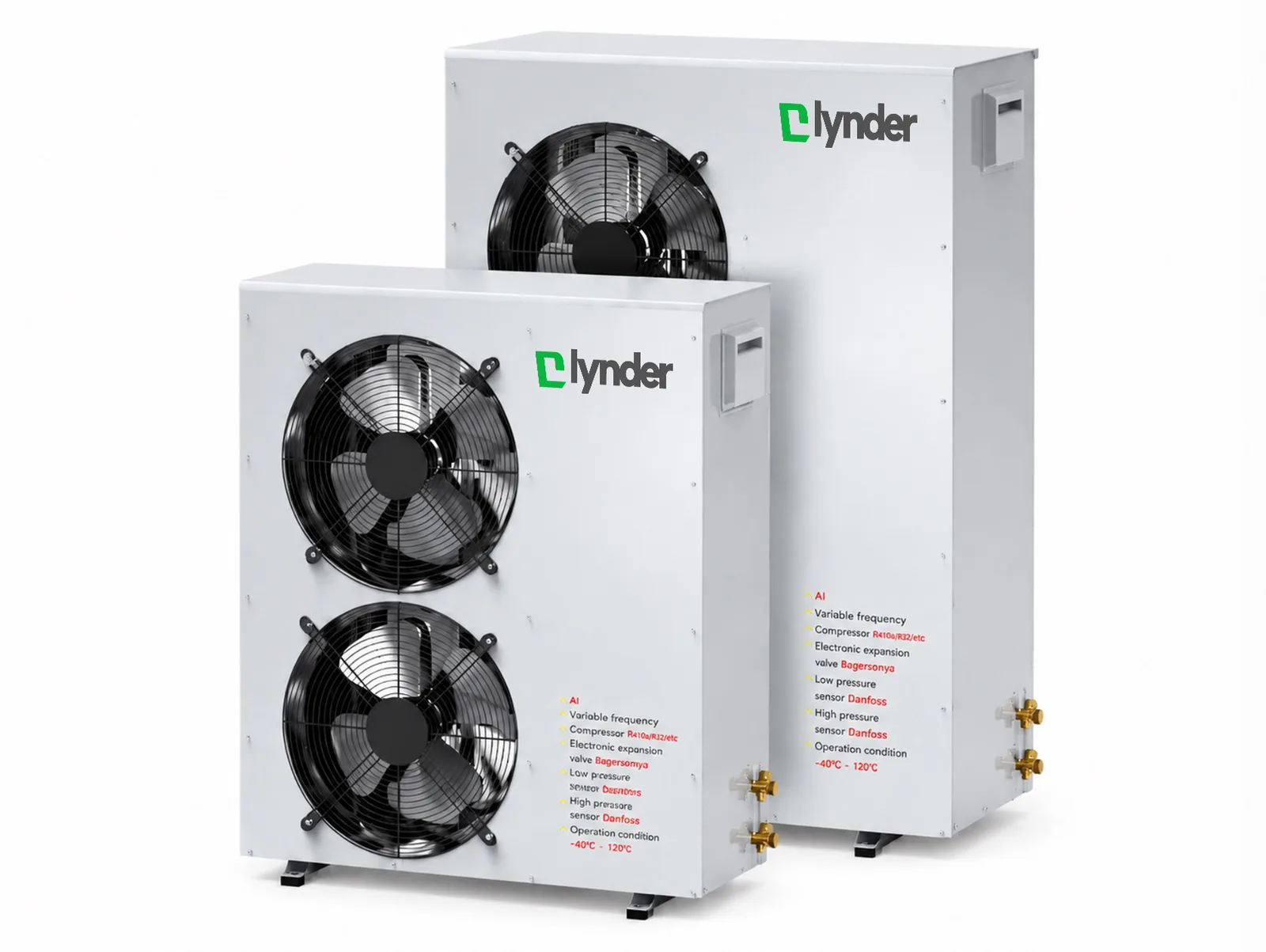

Huashan Series AI Inverter Refrigeration Unit 8HP/10HP

Product Overview

The Huashan series AI inverter refrigeration unit 10HP is an energy-efficient equipment developed by Lynder for cold storage and industrial refrigeration applications. It adopts advanced inverter technology combined with high-quality core components to achieve precise temperature control and stable operation.

Key Features

• High-Efficiency Compressor: Uses Panasonic low-temperature compressor for strong cooling in low-temperature environments.
• Precise Expansion: Equipped with Saginomiya electronic expansion valve for accurate refrigerant flow control.
• Reliable Sensing: Uses Sensata pressure sensor for real-time system pressure monitoring.
• Flexible Switching: Features Saginomiya four-way valve for cooling/heating mode switching.

Applications

Widely used in food processing, cold storage, industrial process cooling, medical cold storage, and refrigerated transport.

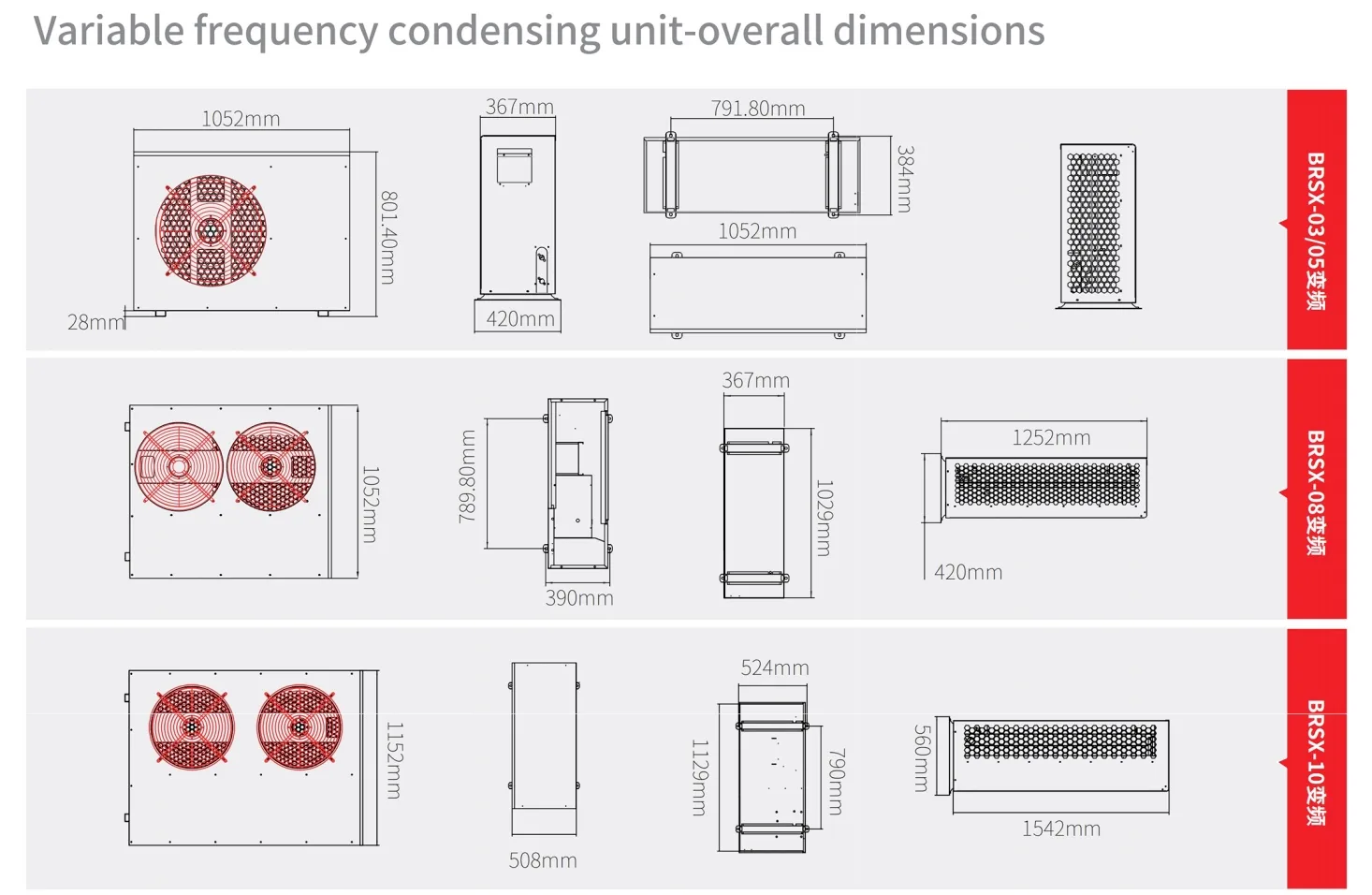

Condensing Unit Performance Parameters
Parameter	BRSX-028	BRSX-030	BRSX-050	BRDZ-050	BRDZ-060	BRSX-070
Max Nominal Cooling Capacity (0°C/40°C)	6.55	7.85	12.9	13.45	15.75	17.3
Max Nominal Cooling Capacity (-10°C/40°C)	4.06	5.5	8.95	9.4	11	12.1
Max Nominal Cooling Capacity (-20°C/40°C)	3.1	3.7	5.8	6.35	7.45	8.15
Operating Range (rps)	30-120	30-120	30-120	30-120	30-120	30-120
Refrigeration Oil	POE	POE	POE	POE	POE	POE
Refrigerant	R410A	R410A	R410A	R410A	R410A	R410A
Voltage	220V/1/50Hz	220V/1/50Hz	220V/1/50Hz	380V/3/50Hz	380V/3/50Hz	380V/3/50Hz
Input Power	1.75kW	2.1kW	3.75kW	3.75kW	4.5kW	6kW
Room Temperature Range	30°C~-20°C	30°C~-20°C	30°C~-20°C	30°C~-20°C	30°C~-20°C	30°C~-30°C
Fan Motor Power	55W	120W	120W	120W	120W	120W
Liquid Line Connection	φ9.52	φ9.52	φ9.52	φ9.52	φ9.52	φ9.52
Suction Line Connection	φ16	φ16	φ16	φ16	φ16	φ16
Length L (mm)	860	1050	1050	1050	1050	1050
Width W (mm)	320	420	420	420	420	420
Height H (mm)	640	800	800	800	800	800

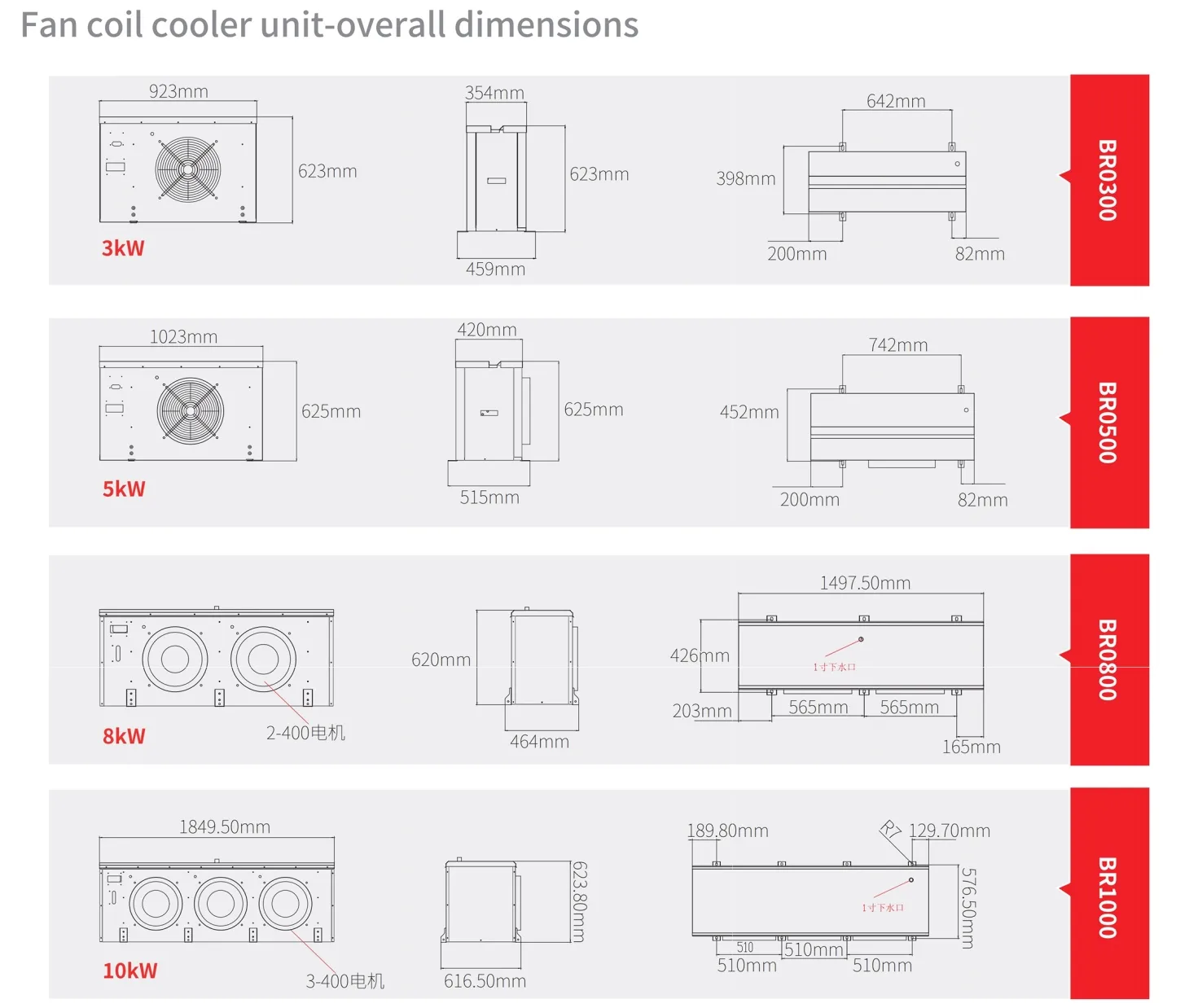

Linde Generation Fan Coil Cooler Unit Parameters
Parameter	BR0250	BR0300	BR0500	BR0700	BR0800
Fan Model	350	350	400	400	400
Fan Voltage	220V/1/50Hz	220V/1/50Hz	220V/1/50Hz	220V/1/50Hz	380V/3/50Hz
Number of Fans	1	1	1	2	2
Fan Power	130W	130W	160W	160W	160W*2
Fan Speed	1400r/min	1400r/min	1430r/min	1430r/min	1450r/min*2
Electric Heater Power	1kW	1kW	1kW	1.2kW	1.5kW
Inlet Size	φ12	φ12	φ12	φ12	φ16
Outlet Size	φ19	φ19	φ19	φ19	φ22

Features

Panasonic low-temperature compressor Sagami electronic expansion valve Sensata pressure sensor Sagami four-way valve
